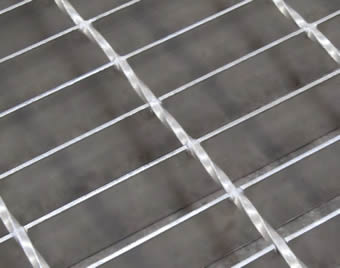

Steel grating by the grid load on certain flat steel bar and spacing Affairs with the high pressure resistance welding machine welded together on the original plate. With the character of high-intensity, light structure and good ventilation. It be widely used in corridors, bridge, ditch cover, covers, ladders, and so on.

Raw Material:

Grid load flat steel bar: High-quality low carbon steel, galvanized steel, stainless steel, alloy steel.

Horizontal pole: Q235A or 304 stainless round steel, twisted square steel, square steel and hexagonal steel.

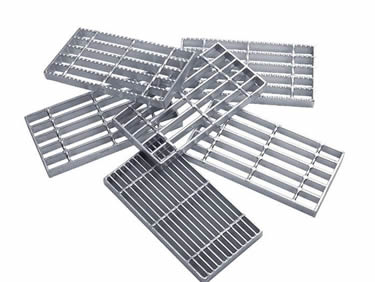

Classification: Welded steel grating, standard pressure lock grating, dense grating, ditch cover and ladders

Features: Strong steel structure made it have a high carrying capacity; With good corrosion resistance through surface by hot-dip galvanized; light structure easy to lifting; flat serrated have the character of safety and anti-slip; ventilation, lighting, heat, explosion-proof.

Finish treatment: Hot dipped galvanized, cold dipped galvanized, spray painting, dip anti-rust oil, can prevent oxidation.

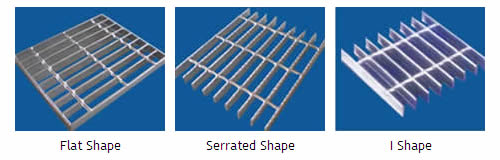

Surface type: Flat type, serrated type, I shape type (According to requirement made different protective treatment).

Flat type: The most widely steel grating.

Serrated type: With better non-slip.

I type: On the surface, path and items not in the same flat. With the character of light weight, economic and practical.

Application of steel grating:

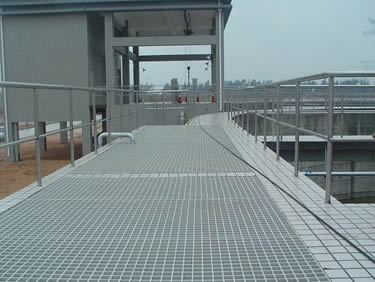

• All kind of plant, such as power plants, chemical plants, steel plants, oil plants, paper-making plants, and so on. Used as platforms.
• All kind of shipping, used as platform of ramp, channels, pumping stations and engine room.
• All kinds bridge, such as side road of railway bridge, suspension bridge, trestle bridge. Used as panel shop.
• Used as drain covers and road fence at municipal engineering and road.
• Other uses, such as oil platform, wharf road, washing platform, tower platform and building fence, and so on.

DSpecifications	kg/m2	DSpecifications	kg/m2
DDG205/30/ 100 50	33.1 36.2	DDG205/40/ 100 50	26.6 29.8
DDG255/30/ 100 50	40.5 43.7	DDG255/40/ 100 50	32.4 35.6
DDG325/30/ 100 50	51.0 54.2	DDG325/40/ 100 50	40.5 43.7
DDG355/30/ 100 50	55.6 58.8	DDG355/40/ 100 50	43.9 47.2
DDG405/30/ 100 50	62.9 66.1	DDG405/40/ 100 50	49.8 53.0
DDG455/30/ 100 50	70.4 73.6	DDG455/40/ 100 50	55.6 58.8
DDG505/30/ 100 50	78.3 81.1	DDG505/40/ 100 50	61.4 64.6
DDG555/30/ 100 50	85.1 88.2	DDG555/40/ 100 50	66.9 70.1
DDG605/30/ 100 50	93.0 96.0	DDG605/40/ 100 50	72.7 75.6
DDG655/30/ 100 50	100.4 103.5	DDG655/40/ 100 50	78.8 82.1

Specifications	kg/m2	Specifications	kg/m2
DG203/30/ 100 50	21.1 24.3	DDG203/40/ 100 50	17.2 20.4
DG253/30/ 100 50	25.6 28.8	DDG253/40/ 100 50	20.6 23.9
DG323/30/ 100 50	31.8 35.1	DDG323/40/ 100 50	25.5 28.8
DG403/30/ 100 50	39.1 42.2	DDG403/40/ 100 50	31.1 34.4

Please provide the detail requirements when inquiry to us. It will helps to give a satisfactory answer.
