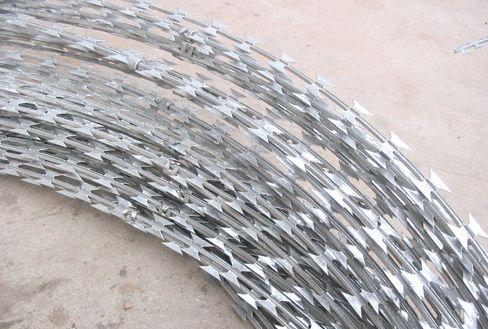

Razor wire, also called barbed tape or concertina wire. It's a metal strips with sharp edges which purpose is to prevent passage by humans. Razor wire is much sharper than the standard barbed wire, the points are very sharp and made to rip and grab onto clothing and flesh.
The multiple blades of a razor wire fence are designed to inflict serious cuts on anyone attempting to climb through and therefore have a strong psychological deterrent effect. In many high-security applications, barbed tape supplanted barbed wire, which could be circumvented relatively quickly by humans with tools, while penetrating razor wire barriers without tools is very slow and difficult, giving security forces more time to respond. Razor wire contains a core hardened steel strip that is often under tension, so if cut, the recoil could cause the wire to unfurl and lash out, striking the cutter.
Razor Types:

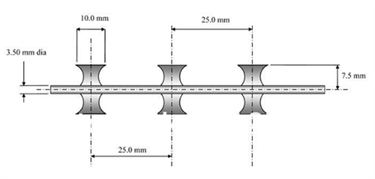

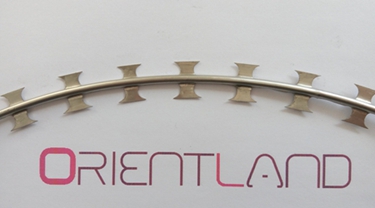

BTO-10
| Thickness | Wire Dia. | Barb Length | Barb Width | Barb spacing |
| 0.5mm(±0.05mm) | 2.5mm(±0.1mm) | 12mm(±1mm) | 13mm(±1mm) | 26mm(±1mm) |

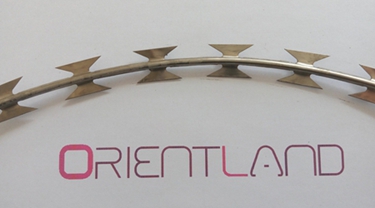

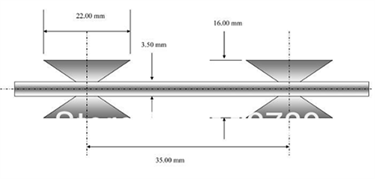

BTO-22
| Thickness | Wire Dia. | Barb Length | Barb Width | Barb spacing |
| 0.5mm(±0.05mm) | 2.5mm(±0.1mm) | 22mm(±1mm) | 15mm(±1mm) | 34mm(±1mm) |

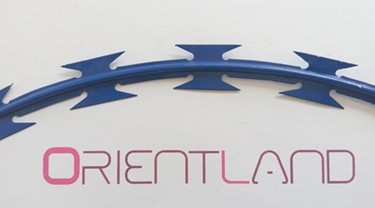

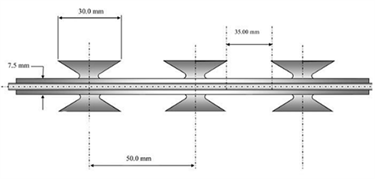

BTO-30
| Thickness | Wire Dia. | Barb Length | Barb Width | Barb spacing |
| 0.6mm(±0.05mm) | 2.5mm(±0.1mm) | 30mm(±2mm) | 18mm(±1mm) | 34mm(±2mm) |

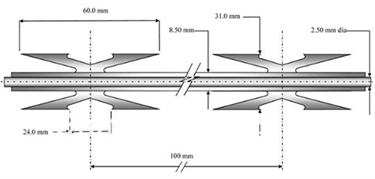

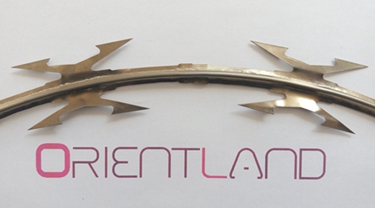

CBT-60
| Thickness | Wire Dia. | Barb Length | Barb Width | Barb spacing |
| 0.6mm(±0.05mm) | 2.5mm(±0.1mm) | 60mm(±2mm) | 32mm(±1mm) | 96mm(±2mm) |

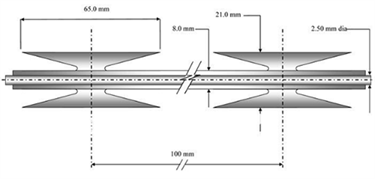

CBT-65
| Thickness | Wire Dia. | Barb Length | Barb Width | Barb spacing |
| 0.5mm(±0.05mm) | 2.5mm(±0.1mm) | 65mm(±2mm) | 21mm(±1mm) | 105mm(±2mm) |
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes | ||||||
| 450mm | 33 | 8M | CBT-65 | Single coil | ||||||
| 500mm | 41 | 10M | CBT-65 | Single coil | ||||||
| 700mm | 41 | 10M | CBT-65 | Single coil | ||||||
| 960mm | 53 | 13M | CBT-65 | Single coil | ||||||
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type | ||||||
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type | ||||||
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type | ||||||
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type | ||||||
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type | ||||||

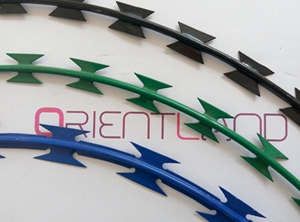

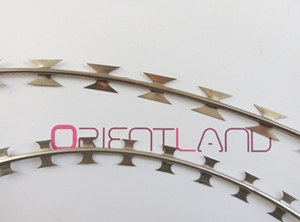

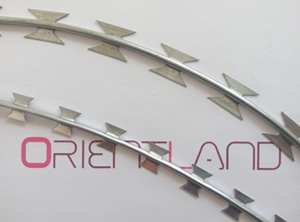

Different Material of Razor Wire: Hot dipped galvanized, PVC powder coated, stainless steel

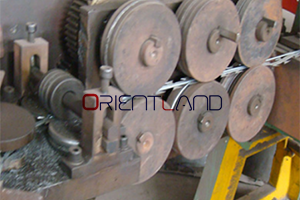

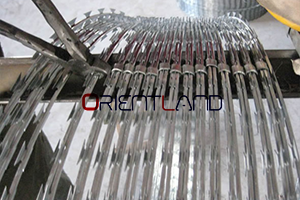

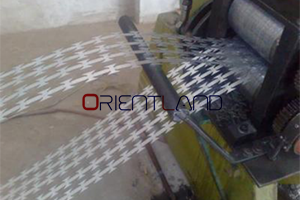

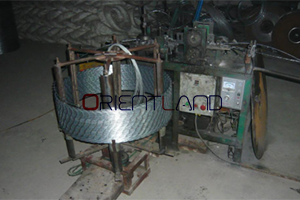

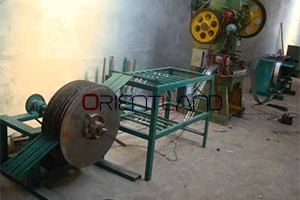

Process: The razor wire is consisted by the core wire and blades. Galvanized steel plate or stainless steel plate punched into certain forms then attached to the core wire in sharp angle to form the blades.
Features: It has the characteristics like good deterrence effect, beautiful appearance, easily constructed, practical, corrosion resistance, anti-ageing and durable.The products offer good frightening result, sharp blades coming in the form of concertina by buckles bring very good result of frightening and stopping to the aggressive perimeter intruders.

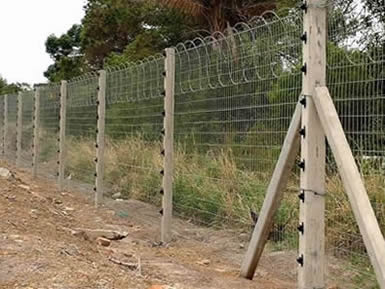

Application: Widely used in military field, prisons, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.
Different Type of Razor Wire
Our Razor Wire products contains Single Coil Razor Wire(without clips), Concertina Razor Wire(with clips), Welded Razor Wire Mesh, Triple Strand Concertina Razor Wire,Razor Wire Rapid Depolyment System.

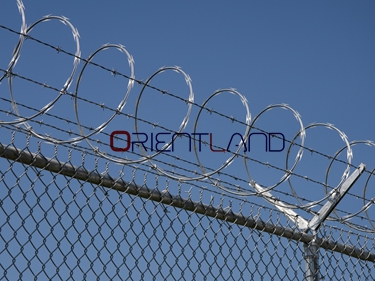

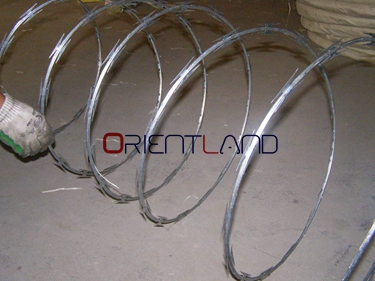

Single coil Razor Wire (without clips)

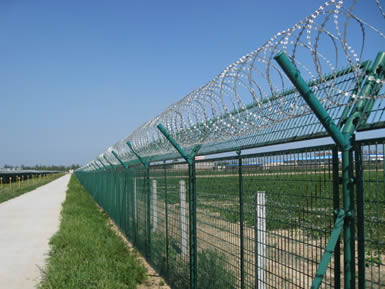

Concertina Wire (with clips)
Concertina wire is one type of razor wire that is formed by clips in large coils which can be extended like a concertina. Each coil actually consists of two oppositely helices which support each other against crushing.
.jpg)
*The Concertina Razor Wire is the most popular razor wire, and the best sale roll diameter is 450mm,500mm, 600mm,700mm, 960mm.

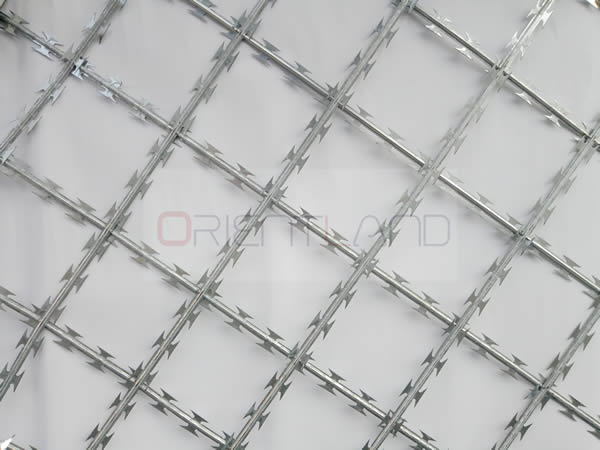

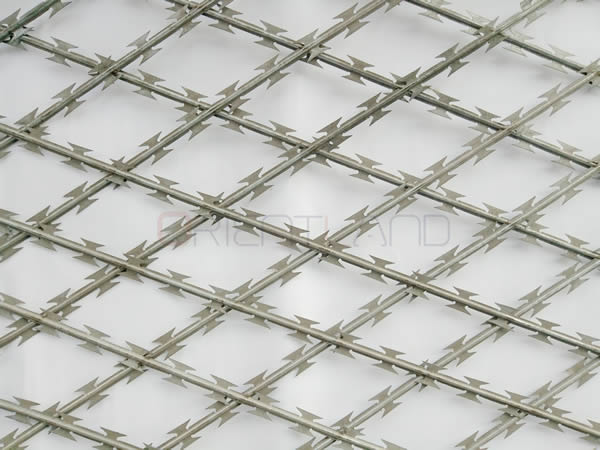

Welded Razor Wire Welded Mesh Fence

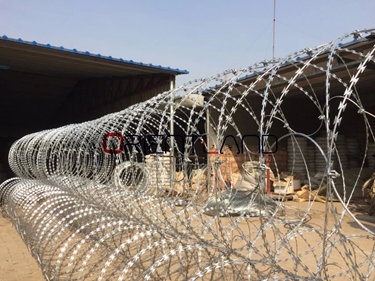

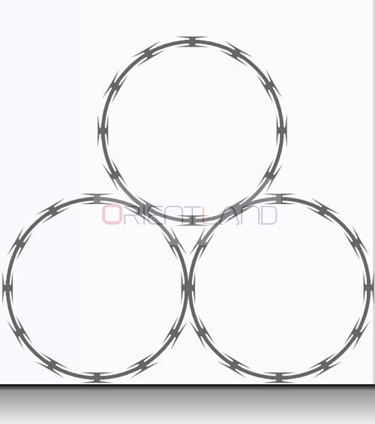

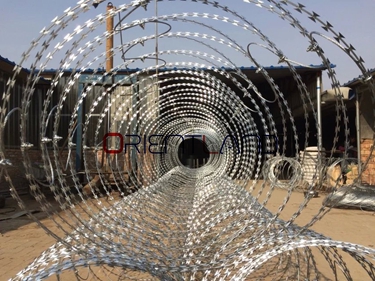

Triple Strand Concertina Razor Wire/ Triple Coil Razor Edge Wire
Razor wire obstacle barrier known as triple strand concertina wire fence or triple coil razor edge wire.It's consists of two parallel concertinas joined by twists wire and topped by a third concertina similarly attached. A triple strand concertina wire fence could be deployed very quickly: it is possible for a party of five men to deploy 50 yards (46 m) of triple concertina fence in just fifteen minutes. Optionally, triple concertina fence could be strengthened with uprights, but this increases the construction time significantly.

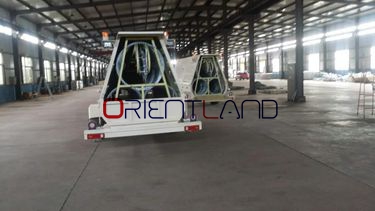

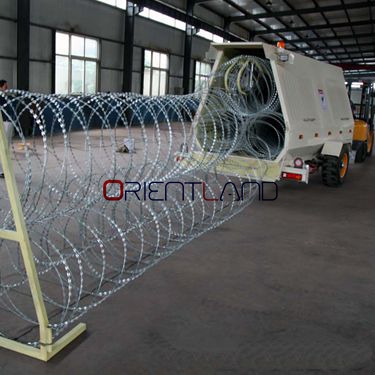

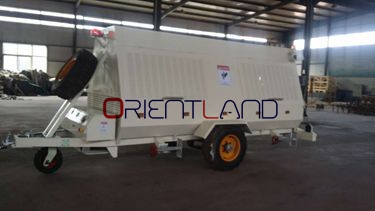

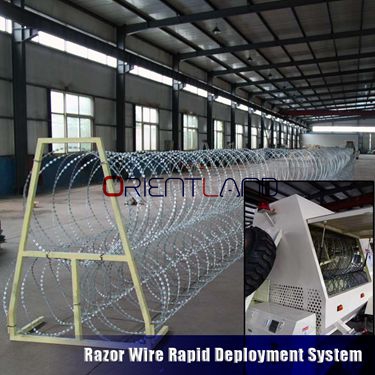

Razor Wire Rapid Deployment System
Also called razor wire trailer deployment, triple strand mobile concertina wire
Please provide the detail requirements when inquiry to us. It will helps to give a satisfactory answer.
