Barbed Wire is one of the most easy installation and cheapest security protection products. Barbed wire are applied to various security fencing and barriers. It can be laid directly in rows on the ground, installed on the top of the fence. To prevent corrosion, barbed wire has a zinc coating or PVC coating. The barbed wire are consists by barb wire and line wire. The line wire diameter is larger. The line wire can have one strand or two strand wires. The barb wires are braided with a system to constant torsion around line wire. One barb wire forms two spikes and two pieces of wire-four spikes. The sharp spikes are protective elements of the barbed wire.

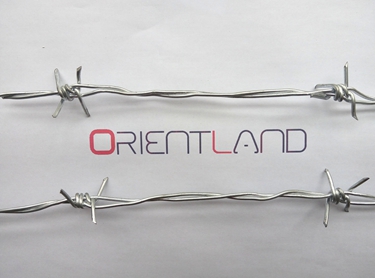

Barbed wire we offer three types of twist patterns: Traditional Twist Barbed Wire, Double Twist Barbed Wire and Single Strand Barbed wire
.jpg)

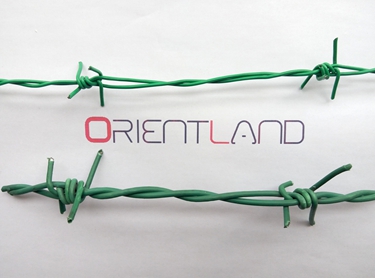

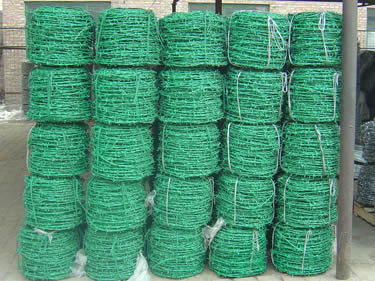

Material: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
| Barbed Wire Specification | |||||||||
| Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | ||||||
| Electric Galvanized, Hot-dip Galvaniized barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | ||||||
| 12# x 12# | |||||||||
| 12# x 14# | |||||||||
| 14# x 14# | |||||||||
| 14# x 16# | |||||||||
| 16# x 16# | |||||||||
| 16# x 18# | |||||||||
| PVC coated, PE coated barbed wire | before coating | after coating | 7.5-15 | 1.5-3 | |||||
| 1.0mm-3.5mm | 1.4mm-4.0mm | ||||||||
| BWG11#-20# | BWG8#-17# | ||||||||
| SWG11#-20# | SWG8#-17# | ||||||||
| PVC PE coating thickness: 0.4mm-0.6mm; different colors or length can be customized. | |||||||||

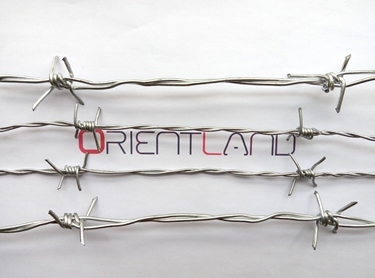

Feature: Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

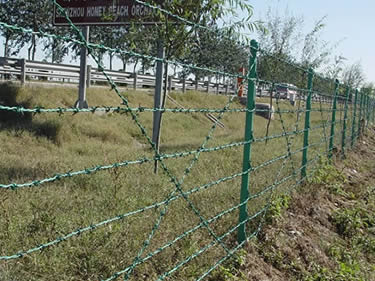

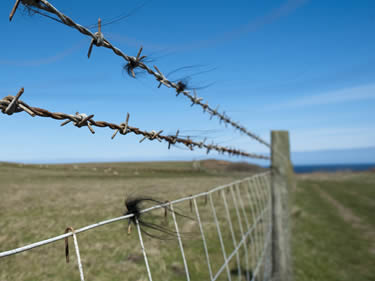

Application: Barbed wire widely used for isolate the meadow, highway, railway.

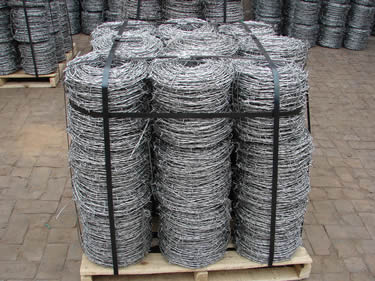

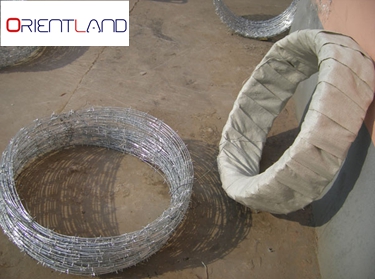

Packing: Plastic inside, hessian outside Plastic inside, waving bag outside
- In nude;

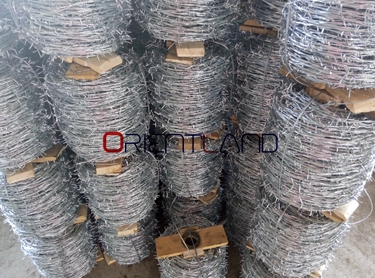

- In iron axletree;

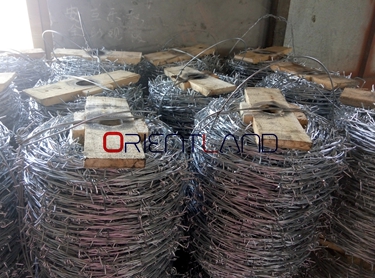

- In wood axletree;
- In wood pallet.

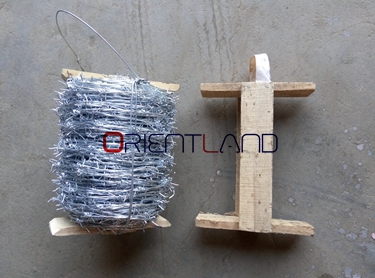

We can also making Wooden Reel as customized requirement.
Single Strand Barbed Wire

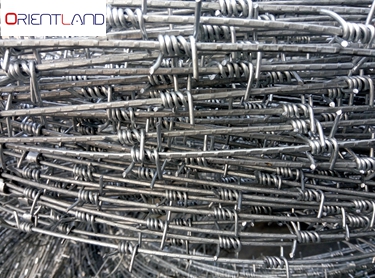

On a single strand barbed wire, in order to avoid spikes rotate around the line wire, the line wire is made by corrugated steel wire, and its cross section is not circular.

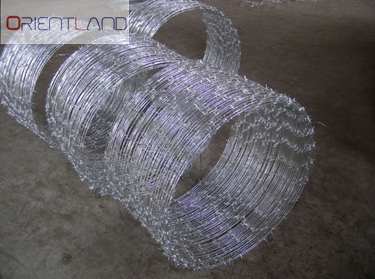

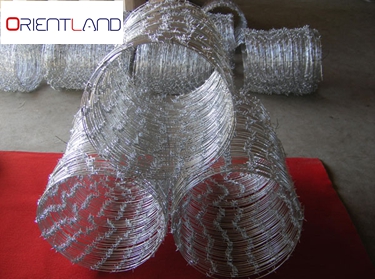

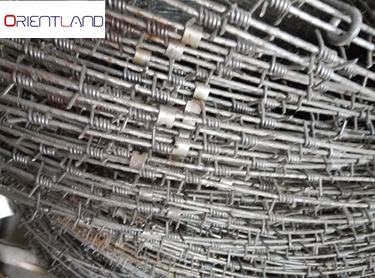

The Single Strand Wire always made to "Concertina Barbed Wire" which is to Clips the opposite circles with Clips.
Material:
- Main Wire: Hot Dipped Galvanized Iron Wire, Steel Wire (rust preventing oil can be paint)
- Barb Wire: Gavanzied iron Wire(Hot dip / electro gal.)
Core Dia: 2.0mm--3.5mm
Barb Dia: 1.8mm--2.5mm
Barb Spacing: 3"/4"/5"/6"
Diameter of Roll: 450mm/600mm/900mm/1100mm
Application Areas: Private Security Zones, Residential Areas, Sports Areas, Private Areas Garden, Various Industrial Applications, Steel Construction Applications

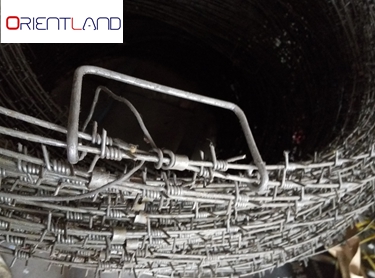

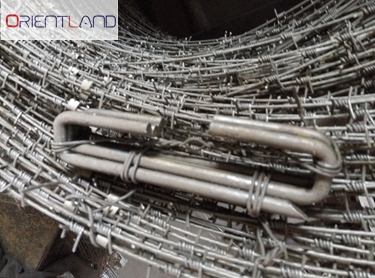

As customers' requirement, the puller and ground anchor can be added.
Please provide the detail requirements when inquiry to us. It will helps to give a satisfactory answer.
