Stainless steel wire is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth. T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.

Wire Materials: SUS302, 304, 316, 304L, 316L.

Characteristics: Square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .

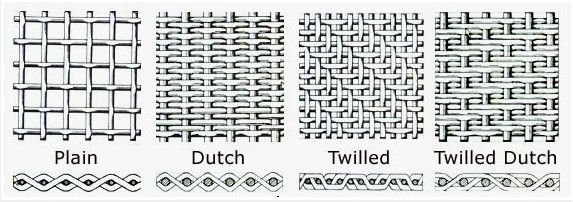

Typical Weaving Patterns: Plain weave, twill weave, dutch weave, twilled dutch weave.



General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

Stainless Steel Wire Mesh and Wire Cloth, Plain Weave
Mesh	Wire Dia. (MM)	Opening (MM)	Material (AISI)
7meshx7mesh	1.00	2.63	304 or316
10meshx10mesh	0.60	1.94	304 or316
12meshx12mesh	0.50	1.62	304 or316
16meshx16mesh	0.40	1.19	304 or316
16meshx16mesh	0.35	1.24	304 or316
18meshx18mesh	0.35	1.06	304 or316
20meshx20mesh	0.40	0.87	304 or316
24meshx24mesh	0.26	0.80	304 or316
30meshx30mesh	0.30	0.55	304 or316
35meshx35mesh	0.17	0.56	304 or316
40meshx40mesh	0.23	0.40	304 or316
50meshx50mesh	0.20	0.31	304 or316
60meshx60mesh	0.15	0.27	304 or316
70meshx70mesh	0.12	0.24	304 or316
80meshx80mesh	0.13	0.19	304 or316
90meshx90mesh	0.12	0.16	304 or316
100meshx100mesh	0.10	0.15	304 or316
120meshx120mesh	0.09	0.12	304 or316
150meshx150mesh	0.063	0.11	304 or316
180meshx180mesh	0.053	0.09	304 or316
200meshx200mesh	0.053	0.07	304 or316

Stainless Steel Wire Mesh and Wire Cloth, Twill Weave
Mesh	Wire Dia. (MM)	Opening (MM)	Material (AISI)
250meshx250mesh	0.040	0.063	316
300meshx300mesh	0.040	0.044	316
325meshx325mesh	0.035	0.043	316L
350meshx350mesh	0.030	0.042	316L
400meshx400mesh	0.030	0.033	316L
450meshx450mesh	0.028	0.028	316L
500meshx500mesh	0.025	0.026	316L

Stainless Steel Wire Cloth, Dutch Weave
Mesh	Wire Dia. (MM)	Material (AISI)
12mesh x 64mesh	0.58 x 0.40	304 or 316
24mesh x 110mesh	0.36 x 0.25	304 or 316
14mesh x 88mesh	0.50 x 0.33	304 or 316
30mesh x 150mesh	0.23 x 0.18	304 or 316
40mesh x 200mesh	0.18 x 0.13	304 or 316
50mesh x 250mesh	0.14 x 0.11	304 or 316
80mesh x 700mesh	0.10 x 0.08	304 or 316
165mesh x 800mesh	0.071 x 0.040	304 or 316
165mesh x 1400mesh	0.06 x 0.04	304 or 316
200mesh x 1800mesh	0.05 x 0.032	304 or 316
825mesh x 2300mesh	0.035 x 0.025	316L
400mesh x 2800mesh	0.030 x 0.02	316L

Please provide the detail requirements when inquiry to us. It will helps to give a satisfactory answer.
