Bastion Barrier

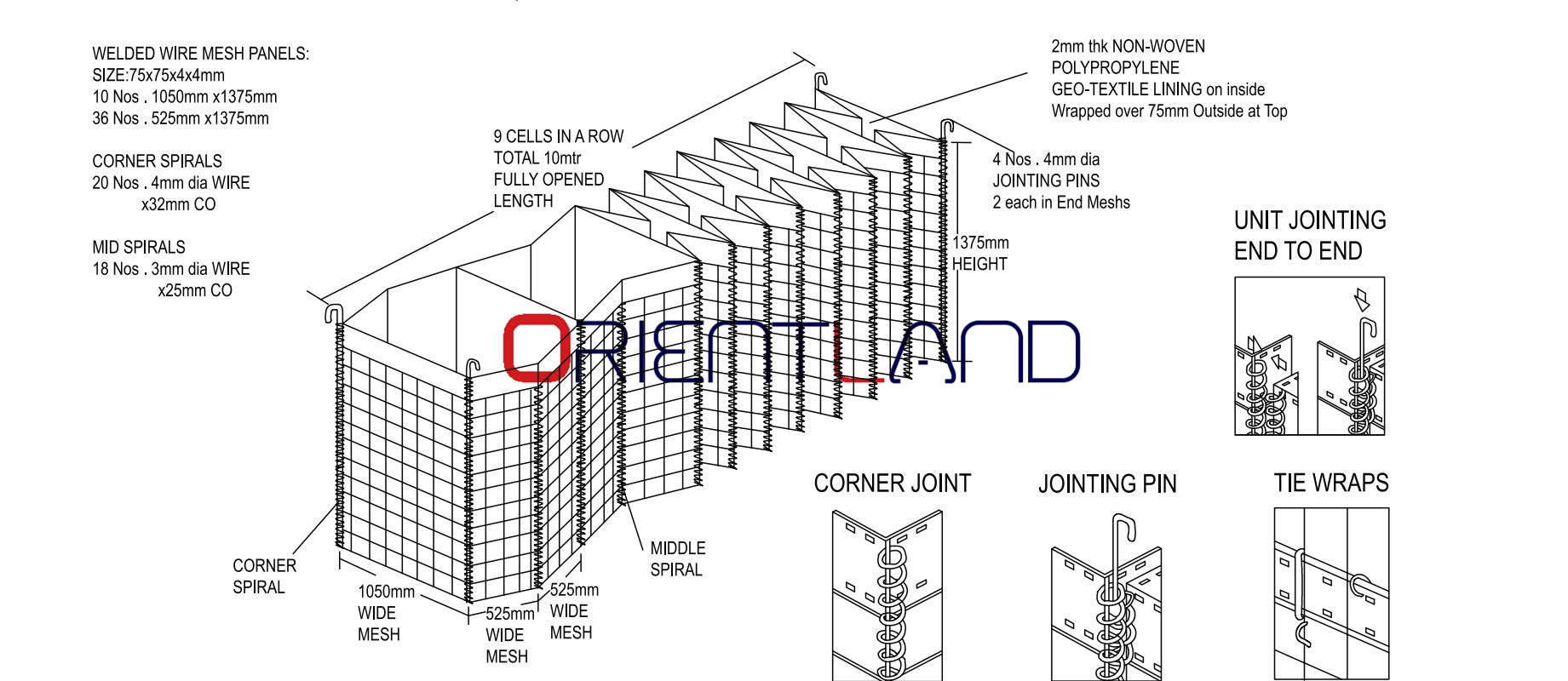

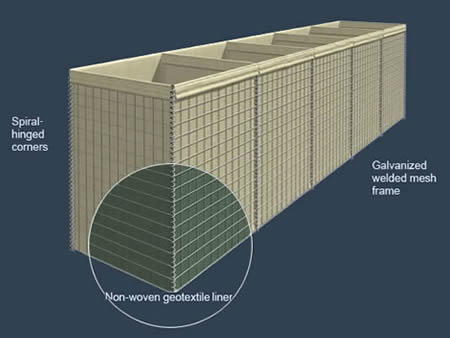

Bastion Barrier also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc.It is a prefabricated, multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the providedjoining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand, stone, then bastion barrier like a defence wall or bunker,it is widely used for military fortification and flood control. Accessories Supplied With Carrier Units.
Product Features
- Low cost, easy installation
- 10-Year limited warranty
- Galvanized steel components
- Suitable to all kinds of surrounding
- Fire proof
Specification
| Wire diameter: | 3mm,4mm,5mm,6mm etc |
| Mesh Size: | 2”×2”, 3”×3”, 4”×4” etc |
| Spring wire diameter: | 3mm,4mm,5mm,6mm etc |
| Panel Finish: | Hot dipped galvanized or Galfan coated |
| Geotextile: | Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc |

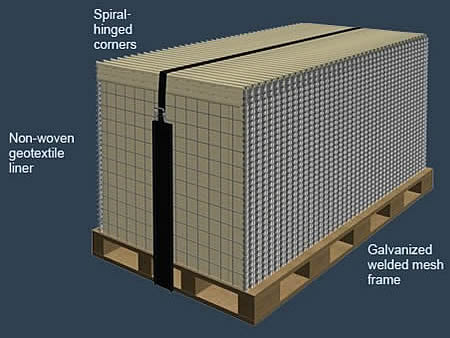

| Packing | Wrapped with shrink film or packed in pallet |
A new system of Hesco Bastion developed specially for military use is deployed from a container, which is dragged along the line of ground where the barrier is to be formed, unfolding up to several hundred meters of barrier in minutes, ready for filling with soil by a backhoe.
- Easy to handle and install
- High tensile and anti-impact capability
- Long life, regular use
- Can be filled with sand, earth, cement, Hesco Bastions, stone.
Mil-1 Type of HESCO BASTION BARRIERS
| Mil 1 dimensions table | ||||
|---|---|---|---|---|
| Item No. | Height (m) | Width (m) | Length (m) | Cells No. |
| Mil 1 | 1.37 | 1.08 | 10 | 9 |
| Note: A unit of Mil 1 requires of 22m3 of fill. The filled requirements take in to account for expansion of the unit, compaction of the fill and loss of the fill. |
||||

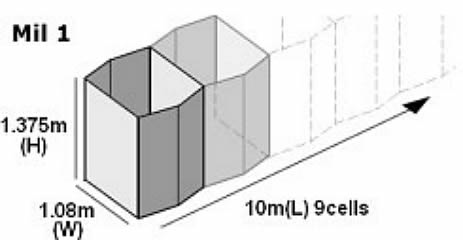

 HESCO BASTION Mil-1 Cell layout |
||||
Mil-2 Type of HESCO BASTION BARRIERS
| Mil 2 dimensions table | ||||
|---|---|---|---|---|
| Item No. | Height (m) | Width (m) | Length (m) | Cells No. |
| Mil 2 | 0.61 | 0.61 | 1.22 | 2 |
| Note: A unit of Mil 2 requires of 0.5m3 of fill. The filled requirements take in to account for expansion of the unit, compaction of the fill and loss of the fill. |
||||

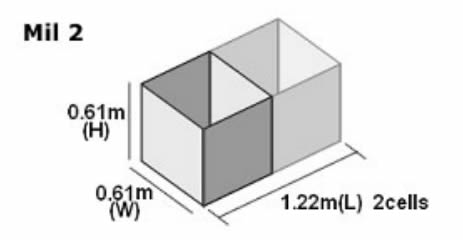

 HESCO BARRIER Mil-2 Cell layout |
||||
Mil-3 Type of HESCO BASTION BARRIERS
| Mil 3 dimensions table | ||||
| Item No. | Height (m) | Width (m) | Length (m) | Cells No. |
| Mil 3 | 1.0 | 1.0 | 10 | 10 |
| Note: A unit of Mil 3 requires of 13m3 of fill. The fill requirements takes in to account for expansion of the unit, compaction of the fill and loss of the fill. |
||||

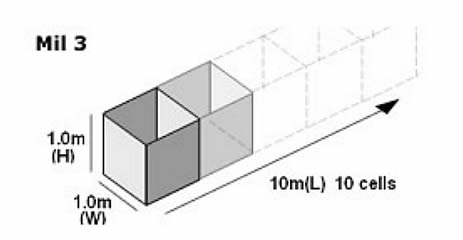

 HESCO BASTION Mil-3 Cell layout |
||||
Mil4 Type of HESCO BASTION BARRIERS
| Mil 4 dimensions table | ||||
|---|---|---|---|---|
| Item No. | Height (m) | Width (m) | Length (m) | Cells No. |
| Mil 4 | 1.0 | 1.5 | 10.0 | 10 |
| Note: A unit of Mil 4 requires of 20m3 of fill. The fill requirements takes in to account for expansion of the unit, compaction of the fill and loss of the fill. |
||||

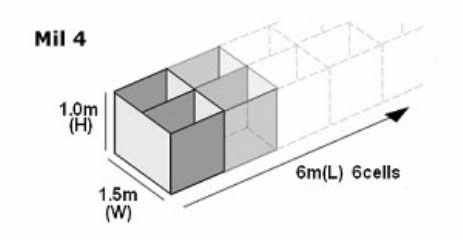

 HESCO BASTION Mil-4 Cell layout |
||||
Mil5Type of HESCO BASTION BARRIERS
| Mil 5 dimensions table | ||||
| Item No. | Height (m) | Width (m) | Length (m) | Cells No. |
| Mil 5 | 0.61 | 0.61 | 3.05 | 5 |
| Note: A unit of Mil 5 requires of 1.6m3 of fill.The fill requirements takes in to account for expansion of the unit, compaction of the fill and loss of the fill. | ||||

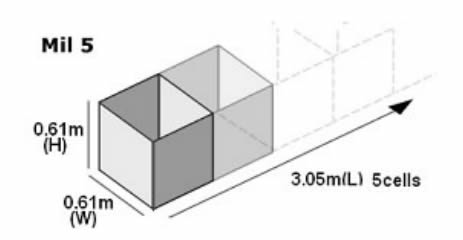

 HESCO BASTION Mil-5 Cell layout |
||||
Mil-6 Type of HESCO BASTION BARRIERS
| Mil 6 dimensions table | ||||
| Item No. | Height (m) | Width (m) | Length (m) | Cells No. |
| Mil 6 | 1.68 | 0.61 | 3.05 | 5 |
| Note: A unit of Mil 6 requires of 4m3 of fill.The fill requirements takes in to account for expansion of the unit, compaction of the fill and loss of the fill. | ||||

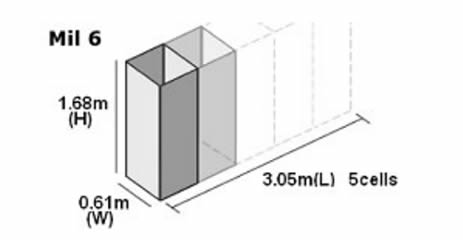

 HESCO BASTION Mil-6 Cell layout |
||||
Mil-7 Type of HESCO BASTION BARRIERS
| Mil 7 dimensions table | ||||
| Item No. | Height (m) | Width (m) | Length (m) | Cells No. |
| Mil 7 | 2.21 | 2.13 | 8.52 | 4 |
|
Note: A unit of Mil 7 requires of 58.5m3 of fill.The fill requirements takes in to account for expansion of the unit, compaction of the fill and loss of the fill. |
||||

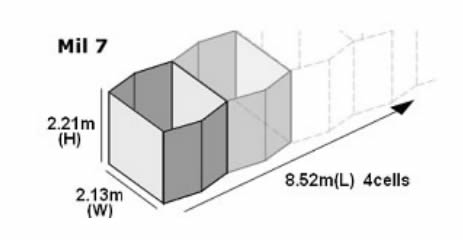

 HESCO BASTION Mil-7 Cell layout |
||||
Mil-8 Type of HESCO BASTION BARRIERS
| Mil 8 dimensions table | ||||
| Item No. | Height (m) | Width (m) | Length (m) | Cells No. |
| Mil 8 | 1.37 | 1.22 | 10 | 9 |
|
Note: A unit of Mil 8 requires of 25m3 of fill.The fill requirements takes in to account for expansion of the unit, compaction of the fill and loss of the fill. |
||||

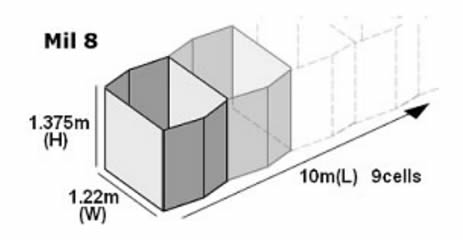

 HESCO BASTION Mil-8 Cell layout |
||||
Mil-9 Type of HESCO BASTION BARRIERS
| Mil 9 dimensions table | ||||
| Item No. | Height (m) | Width (m) | Length (m) | Cells No. |
| Mil 9 | 1.0 | 0.76 | 6.84 | 9 |
|
Note: A unit of Mil 9 requires of 9m3 of fill.The fill requirements takes in to account for expansion of the unit, compaction of the fill and loss of the fill. |
||||

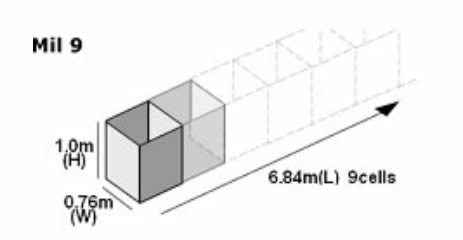

 HESCO BASTION Mil-9 Cell layout |
||||
Mil-10 Type of HESCO BASTION BARRIERS
| Mil 10dimensions table | ||||
| Item No. | Height (m) | Width (m) | Length (m) | Cells No. |
| Mil 10 | 2.13 | 1.52 | 0.76 | 5 |
|
Note: A unit of Mil 10 requires of 36.7m3 of fill.The fill requirements takes in to account for expansion of the unit, compaction of the fill and loss of the fill. |
||||

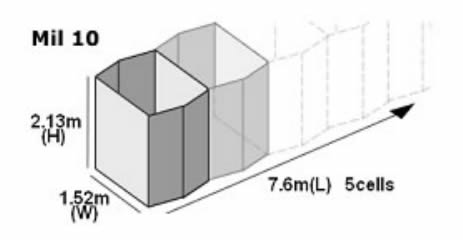

 HESCO BASTION Mil-10 Cell layout |
||||
Please provide the detail requirements when inquiry to us. It will helps to give a satisfactory answer.
